Product description

Helios Pack

Helios Pack (Sterilization reels) provide healthcare workers an easy and safe method to enclose medical devices intended to be sterilized in steam, ethylene oxide (EO) or formaldehyde sterilizers. Helios Pack is made of a multilayer co-polymer film (PET/PP) and specialized medical paper to ensure effective sterilization of your medical instruments and provide high barrier against microbial activity.

Helios Pack uses water based and non-toxic process indicators that are printed on the surface of the medical grade paper. The clear and easy visibility of the indicators makes it easy for you to differentiate between a processed and unprocessed pack of instruments.

A wide range of standard sizes are available with 60gsm and 70 gsm medical grade paper which allows you to select the correct size for your packing requirements.

A wide range of standard sizes allows you for optimum choice of a correct-sized pack for each instrument and for double packing purposes.

Key characteristics of Sterilization Reels

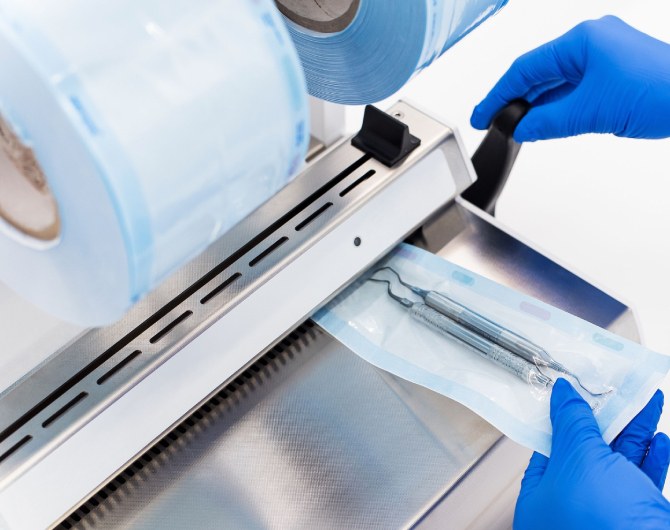

  • Easily sealable with any heat sealing machines
  • Three Independent sealing lines
  • Water-based inks that are non-toxic and confer to EN Standards
  • Excellent permeability to gas and excellent microbial barrier properties.
  • Manufactured in both 60 gsm and 70 gsm medical grade paper
  • Reinforced co-polymer transparent film (PET/PP)
CODE SIZE IN CMS (WIDTH X LENGTH)
Helios Reel 05200 05 cm x 200 m
Helios Reel 75200 7.5 cm x 200 m
Helios Reel 10200 10 cm x 200 m
Helios Reel 15200 15 cm x 200 m
Helios Reel 20200 20 cm x 200 m
Helios Reel 25200 25 cm x 200 m
Helios Reel 30200 30 cm x 200 m
Helios Reel 35200 35 cm x 200 m
Helios Reel 40200 40 cm x 200 m

Literature

You can access the documents by clicking bold link.
Please contact us if you have any questions or require detailed information.

No Document Title
1 Phoenix Corporation Product Brochure
2 Sterilization Reel (60gr)  Technical Literature
